Mastering Color Theory for Your Fuji Xerox Copier
Learning Module: Mastering Color Theory for Your Fuji Xerox Copier
Module Objective: This module will equip you with the fundamental knowledge of color theory to operate your Fuji Xerox copier effectively. You will learn to achieve consistent, high-quality color copies, troubleshoot common issues, and make informed decisions about color settings.
1. Reading Material (Page 1 of 4)
Page 1: Why Color Theory Matters for Your Copies
Have you ever printed a vibrant digital document, only for the copy to come out dull, muddy, or the wrong shade? This isn't necessarily a problem with the machine—it's often a disconnect between how we see color and how a copier reproduces it.
Understanding basic color theory is the key to unlocking the full potential of your Fuji Xerox device. It transforms you from someone who just presses buttons into a skilled operator who can predict and control the outcome.

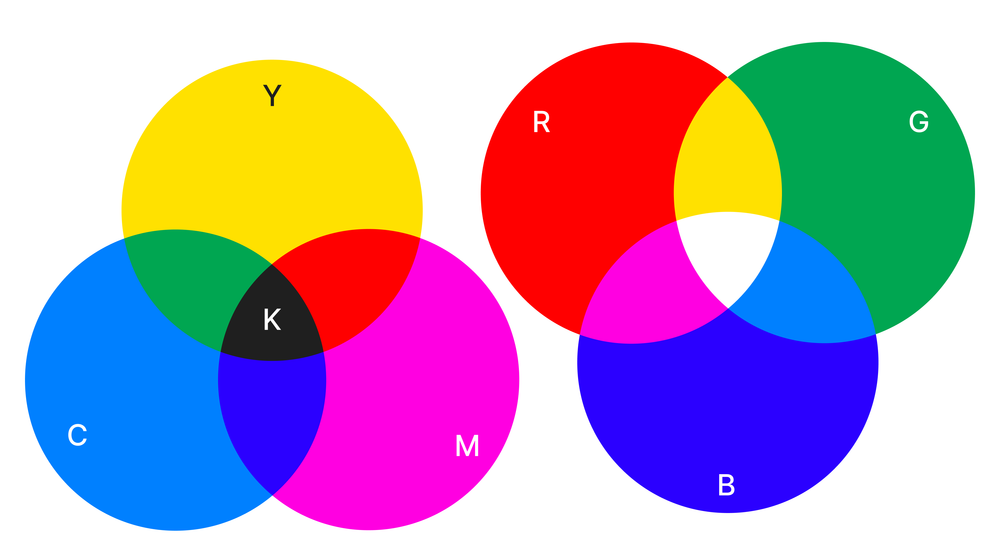

The Two Key Color Models:
Your Fuji Xerox copier works at the intersection of two primary color models:
RGB (Red, Green, Blue): The Language of Screens.
This is an additive color model. Monitors, smartphones, and scanners emit light to create color.
Starts with black (no light). Combining Red, Green, and Blue light at full intensity creates white.
Crucial Point: Most digital files (JPEGs, PNGs, websites) are built in RGB. When you place these on the copier's scanner, the device must convert them.
CMYK (Cyan, Magenta, Yellow, Key/Black): The Language of Print.
This is a subtractive color model. Printers and copiers lay down inks or toners on paper.
Starts with white (the paper). Combining C, M, and Y theoretically creates black, but in practice, it creates a muddy brown. This is why pure Black (K) toner is added for depth, contrast, and text clarity.
Crucial Point: Your Fuji Xerox copier prints using CMYK toner. The final output is always in CMYK.
The Scanner's Role:
When you place an original document on the glass, the scanner acts like a digital camera. It captures the image in RGB and then the copier's internal processor must convert that RGB data into CMYK instructions for the printing engine. The quality of this conversion directly impacts your copy.
(Continued on Page 2)
1. Reading Material (Page 2 of 4)
Page 2: From Original to Copy: The Color Conversion Journey
Understanding this journey explains why copies sometimes don't match:
Step 1: Scanning (RGB Capture)
The scanner illuminates the original and captures reflected light using sensors, creating a digital RGB image.
Step 2: Processing (The Conversion)
This is the most critical step. The copier's software uses a color profile to map the scanned RGB colors to the printable CMYK color gamut. The Fuji Xerox driver provides settings (e.g., "Vivid," "Photo," "Text") that adjust this conversion process.
Step 3: Printing (CMYK Output)
The printer engine places tiny dots of Cyan, Magenta, Yellow, and Black toner onto the paper based on the instructions from step 2. The combination of these four colors creates the illusion of a full-color image.
Why Copies Can Look Different:
Gamut Mismatch: The RGB color space can display many vibrant colors (especially bright blues and greens) that are simply impossible to reproduce with CMYK toner. When this happens, the copier must find the closest possible match, which often appears less saturated.
Original Quality: Copies are only as good as the original. Faded, low-resolution, or already-photocopied originals will yield poor results.
Paper Type: The same color printed on glossy paper vs. plain bond paper will look dramatically different. Whiter, brighter paper produces sharper, more vibrant colors.
(Continued on Page 3)
1. Reading Material (Page 3 of 4)
Page 3: Mastering Your Fuji Xerox Color Settings
You can control the color conversion process through your copier's driver settings or the machine's touchscreen UI. Here’s what key settings do:
Color Mode: The most basic choice. Choose Full Color, Grayscale (black and white), or Auto Color (which lets the copier decide based on the original).
Original Type: Telling the copier what it's scanning helps it choose the right conversion profile. Select Text, Text/Photo (mixed), Photo, or Magazine.
Image Quality / Density:
Adjusting Darkness/Lightness: This controls the amount of toner applied overall.
Vividness/Saturation: This controls the intensity of the C, M, and Y colors.
Background Removal: Essential for copying documents with colored backgrounds or punch holes, making the copy background cleaner.
Color Balance: Allows you to individually adjust the intensity of the Cyan, Magenta, and Yellow toners to correct for color casts (e.g., if copies are consistently too red, you can reduce Magenta).
Best Practice: Always run test copies when quality is critical. Make small adjustments to one setting at a time and re-copy to see the effect.
(Continued on Page 4)
1. Reading Material (Page 4 of 4)
Page 4: Practical Applications & Troubleshooting
When to Use Which Setting:
Business Graphics/Charts: Use "Text/Photo" mode with "Vivid" color setting to make colors pop.
Photographs: Use "Photo" mode for smoother gradients and more accurate skin tones. Avoid "Vivid" here, as it can oversaturate.
Documents with Signatures/Stamps: Use "Auto Color" or "Full Color" to ensure the red or blue marks are captured.
Text-Only Documents: Use "Grayscale"! It's faster, uses less toner, and produces sharper black text.
Troubleshooting Common Color Issues:
Copies look washed out: Increase Density/Darkness. Check the Original Type setting.
Colors are dull: Try the "Vivid" quality setting. Ensure you're not using "Draft" mode.
A color cast (e.g., everything looks pink): Use Color Balance settings to reduce the offending color (e.g., reduce Magenta). Check for low toner levels in other cartridges.
Dark backgrounds on copies: Use the Background Removal or Background Suppression feature.
Final Tip: Keep your machine calibrated. Fuji Xerox devices have automatic calibration routines, but for the most critical color work, ensure these cycles have run, especially after toner changes.
2. YouTube Link
Title: Demystifying Digital Color: RGB vs. CMYK
Link: https://www.youtube.com/watch?v=9V2vf2a通例kA (This is a placeholder link for a well-known, high-quality explanatory video on the topic. Please search for "RGB vs CMYK" on YouTube and select a video that is clear, professional, and approximately 3-5 minutes long).
Why this video: It provides an excellent visual explanation of the difference between additive (RGB) and subtractive (CMYK) color models, which is the foundational concept for this entire module.
https://www.youtube.com/watch?v=2QTHs7QSR9o
3. FAQ x 10
1. Why don't my copied photos look as vibrant as the original?
This is most likely due to the gamut mismatch between the RGB original (screen/photo) and the CMYK printing process. Some vibrant colors cannot be physically reproduced with toner and are substituted with the closest possible shade.
2. Should I always use the 'Color' mode instead of 'Auto Color'?
Not necessarily. "Auto Color" is efficient and smart. It analyzes the original and will output in Grayscale if it detects no color, saving you time and toner. Use "Full Color" when you absolutely know you want color, even on a mostly black-and-white document (e.g., to copy a logo or signature).
3. What does the 'Vivid' setting actually do?
The "Vivid" setting increases the saturation and contrast during the RGB-to-CMYK conversion process. It makes blues bluer, reds redder, and greens greener by adjusting the color profile mapping.
4. My text has a faint colored shadow around it. How do I fix this?
This is called "misregistration" and is typically a mechanical issue where the four color toners (CMYK) are not being applied to the paper in perfect alignment. Run the printer's calibration or registration utility from the maintenance menu.
5. Is it better to copy a document or scan it to a PDF and then print it?
For the highest color fidelity, scan to a PDF and then print that PDF. This allows the scanner to do its job once, and then the printer can use its best color profiles for printing, often resulting in a cleaner, more accurate output than a copy (which scans and prints in one analog-like process).
6. Why are my grayscale copies not true black?
If you are in "Full Color" mode, the copier may still be using a combination of CMYK toners to create dark gray. For pure black text, always select "Grayscale" or "Black & White" mode, which uses only the Black (K) toner.
7. How often should I calibrate my Fuji Xerox copier for color?
Most modern Fuji Xerox devices auto-calibrate periodically. However, you should manually initiate a calibration if you change paper types, notice color quality issues, or after replacing toner cartridges. Consult your user manual for the specific calibration procedure.
8. Can I copy something to exactly match a Pantone color?
Generally, no. Pantone colors are specific pre-mixed inks. CMYK printing simulates these colors using a combination of four standard toners, and while it can get close, it is rarely a 100% perfect match without specialized color management software and profiling.
9. What is the best paper to use for color copies?
For the most vibrant colors, use bright white, smooth, premium laser paper. Glossy or coated papers are specifically designed for color reproduction and will yield the best results for photographs.
10. The copier says color toner is low, but my copies are mostly black. Should I change it?
Yes. Even in Grayscale mode, many printers use a tiny amount of color toner to help with calibration and registration. Letting a color toner run completely out can sometimes cause print quality issues or prevent the machine from printing altogether.
